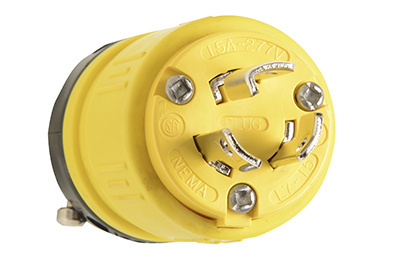

Locking Rubber Plug 15amp 277volt L7-15p
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- Rubber body construction stands up to impacts, oil, chemicals, heat, and weather.
- Floating blades allow self-alignment with contacts and reduce stress on blades and contacts.
- Neoprene grommet keeps out contaminants at cord entrance.
- Terminal screws come backed out -- ready-to-wire.
- Nickel-plated blades and connectors provide an extra measure of corrosion resistance.
- Closure cap on watertight model forms a seal to keep out contaminants when connector is not in use.
- Multiple seals between plug and connector on watertight version protects electrical connection from contaminants.
Specifications
General Info
| Color | Yellow | ||
| Type | Locking, Plug | ||
| Application Sector | Industrial | ||
| Product Line | Pass & Seymour | ||
| Country Of Origin | United States | ||
| Features | Locking | ||
| Warranty Type | 1-Year | ||
| Standard | UL498 | ||
| UPC Number | 785007114508 |
Dimensions
| Product Length US | 2.44 in | ||
| Product Width US | 1.6 in |
Listing Agencies / 3rd Party Agencies
| CSA Listed | Yes | ||
| CSA File Number | 701645 |
Technical Information
| Amperage | 15 A | ||
| Flanged | No | ||
| Connector Style | Locking | ||
| Indoor/Outdoor | Indoor | ||
| NEMA Configuration Code | L7-15P | ||
| Number of Poles | Double Pole | ||
| Number of Wires | 3 | ||
| Terminal Accommodation | #14 AWG - #10 AWG | ||
| Voltage | 277.0 V | ||
| Wire Size | 14 - 10 AWG |
