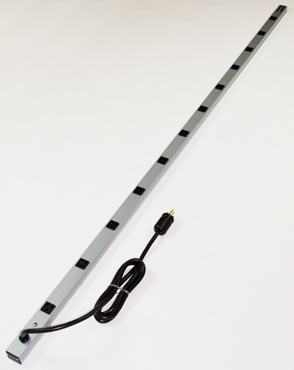

CabinetMate Plug-In Outlet Center Unit / 120V/20A/77 long/12 O/L /15' cord/Twist Lock Plug
7712ULBD20R-TL
Wiremold
Bazaarvoice SAP Hybris Integration Version 2.8.1
Twelve 20A outlets with t-slots, 15' (4.6m) cord. Length 77'' (2m). Receptacle center-to-center 6'' (152mm). 20 Amp unit with a 20A resettable circuit breaker. Units available with straight blade or Locking Plug.
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Specifications
General Info
| Product Line | Wiremold | ||
| UPC Number | 786776052664 | ||
| Country Of Origin | Mexico | ||
| Receptacle Type | Simplex | ||
| Number of Receptacles | 12 | ||
| Application Sector | Commercial | ||
| Standard | cULus Recognized: File E66421 Guide XBYS XUHT VZCA | ||
| Type | PIOC |
Additional Information
| RoHS Compliant | Yes | This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863. |
Listing Agencies / 3rd Party Agencies
| cULus ListingNumber | E66421 | ||
| cULus Listed | Yes |
Buy American Act Compliance
| NAFTA | Yes |
Technical Information
| Phase | Single | ||
| Amperage | 20 A | ||
| Enclosure Type | Aluminum | ||
| Mounting Type | Spring Clip | ||
| Voltage | 125.0 V | ||
| Environmental Conditions | Dry interior locations |
Resources
Installation Instructions
