WMFB2DR2N Series Dual-Gang Floor Box Assembly

Includes dual-gang box, two 15A tamper-resistant duplex receptacles, and nickel cover with four screw plugs. For hole cut dimensions, see installation instructions sheet. Box Dimensions: 3 1/4'' W x 3 3/4'' L x 3 7/8'' D (83mm W x 95mm L x 98mm D) Device Plate: 4 7/8'' W x 5 1/16'' L(124mm W x 129mm L).

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

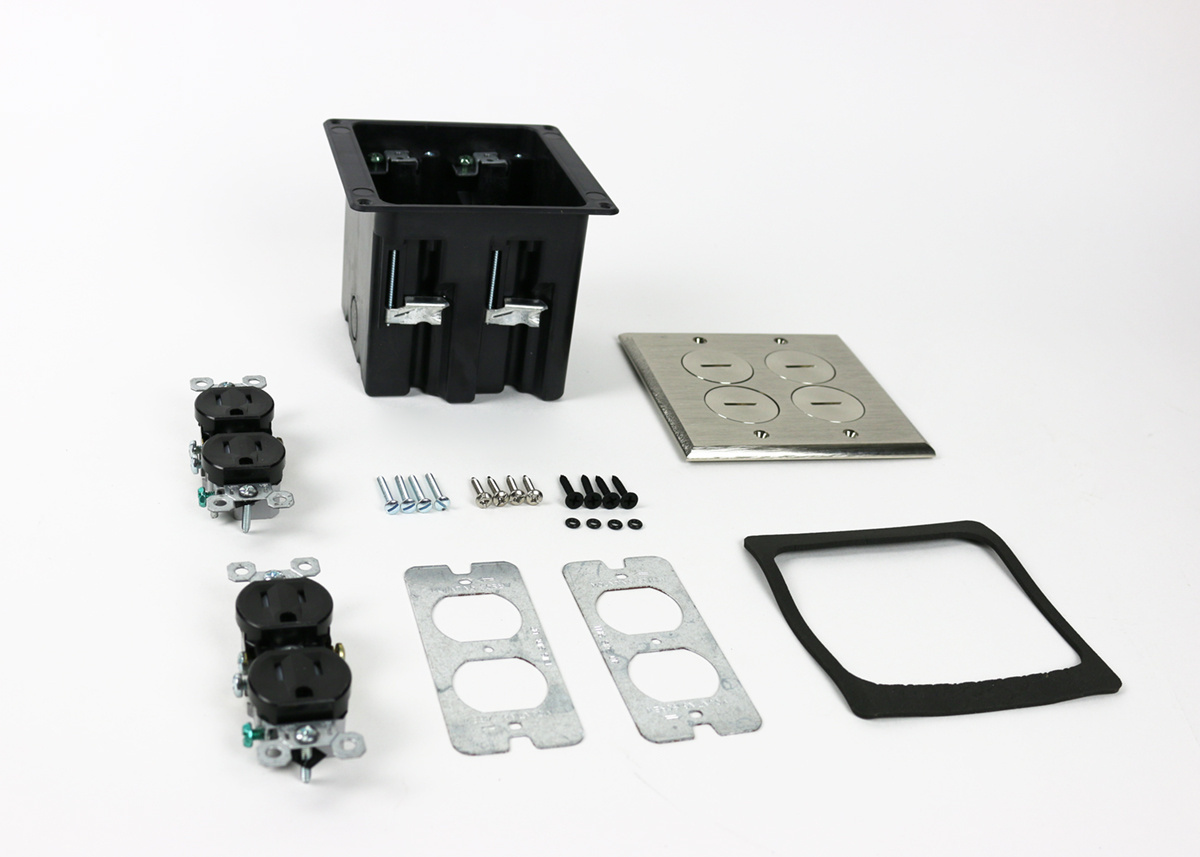

Includes dual-gang box, two 15A tamper-resistant duplex receptacles, and nickel cover with four screw plugs.
Box Dimensions: 3 1/4'' W x 3 3/4'' L x 3 7/8'' D (83mm W x 95mm L x 98mm D) Device Plate: 4 7/8'' W x 5 1/16'' L(124mm W x 129mm L).
For hole cut dimensions, see installation instructions sheet.

Specifications

General Info

Type	Floor Box
Application Sector	Commercial, Residential
Product Line	Wiremold
Country Of Origin	China
Construction	Not Assembled
Standard	cULus Listed Nonmetallic Outlet Boxes: File E143222 Guide QCMZ. Meets Article 314.27(C) of NEC.
Cover Style	Surface
UPC Number	786564053958

Dimensions

Product Depth US	3.875 in
Product Width US	3.25 in
Knockout Size	1/2 in, 3/4 in

Listing Agencies / 3rd Party Agencies

cULus Listed

Yes

Additional Information

RoHS Compliant

Yes

This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.

Technical Information

Box Type	Recessed
Cable Entry	Through Floor
Box Capacity	2 Gangs
Service Capacity	Dual
Floor Type	Wood
Depth Behind Device Plates	3.87 in
Minimum Floor Depth	5 in
Number of Outlets	4
