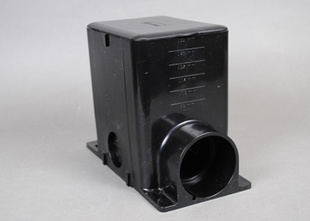

ModulinkTM 880MP Series Rectangular Plastic Floor Box with 2 Inch Conduit Opening

880MP2 Wiremold

The Modulink™ nonmetallic floor box with 2 inch conduit feed provides power and communication services directly to the workstation or to any open space location. The Modulink™ Floor Box is a gangable box that allows a one-gang floor box to easily be turned into a two- or three-gang box simply by ganging together individual boxes. This floor box has many applications, some of which are commercial offices, retail stores, malls, financial and government institutions.

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

2'' [51mm] conduit openings. Provides the largest conduit feed in the industry. Meets customer requirements for greater communication cable capacity.
Conduit reducers and plugs provided. Allows direct reduction from 2'' to 1 1/2'' or 1 1/4'' [51mm to 38mm or 32mm]. Reduces installation time by providing direct reduction and separate plugs by eliminating the need to cut out plugs to form reducers.
Ratchet adjusting ring. Allows connection of cover flange without glue or mechanical fasteners. Reduces installation time and cost by providing 10° of post-pour adjustment of the cover flange.

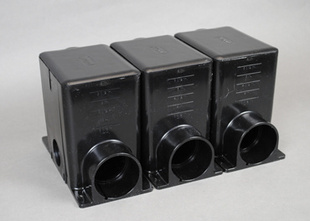

Modular design and gangability. One SKU to order boxes, with the ability to configure boxes as needed on the job site.

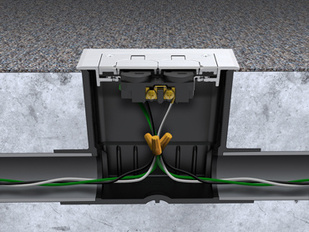

Pass-through capability. Can feed multiple gangs from a single cable feed location. Reduces total installation time.
Depth markings on exterior of the box. Makes floor box depth calculations quick and easy. Reduces installation time and labor costs.

Specifications

General Info

Product Line	Wiremold
Color	Black
UPC Number	786776180824
Country Of Origin	United States
Construction	Assembled
Application Sector	Commercial
Standard	cULus Listed Nonmetallic Outlet Boxes: File E110748 Guide QCMZ.
Type	Floor Box

Dimensions

Product Width US	4.13 in
Product Weight US	3.3 lb
Product Volume US	212.95 cu in
Product Depth US	8.25 in
Product Height US	6.25 in
Cubic Capacity	100 in³

Additional Information

RoHS Compliant	Yes		This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.
Product Environmental Profile	Yes

Listing Agencies / 3rd Party Agencies

cULus ListingNumber	E110748
cULus Listed	Yes

Buy American Act Compliance

NAFTA

Yes

Technical Information

Cable Entry	Knockouts & Conduit Hubs
Number of Outlets	0
