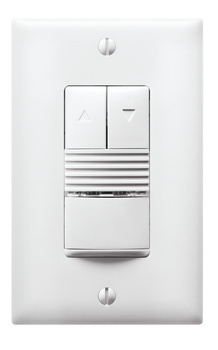

0-10V PIR Wall Switch Occupancy Sensor, 347V, White
PW-311-347-W
Wattstopper
Bazaarvoice SAP Hybris Integration Version 2.8.1
The PW-311 passive infrared (PIR) dimming wall switch sensor can turn lights OFF and ON based on occupancy and allow the user to increase or decrease the lighting level. It works with 0-10 VDC dimming drivers and ballasts to control lighting loads including LEDs.
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- Vandal resistant lens combines precise coverage with durability
- Presentation mode may be deactivated to allow Auto-ON operation after 15 second time delay
- Optional Smart Light Level adapts ambient light hold off threshold to meet user needs
- Selectable walk-through mode turns lights off three minutes after the room is initially occupied if no motion is detected after the first 30 seconds
- Test mode allows quick and easy verification of coverage
- Selectable audible and/or visual alerts for impending shutoff
- LED indicates occupancy detection
Specifications
General Info
| Product Line | Wattstopper | ||
| Color | White | ||
| UPC Number | 754182939008 | ||
| Country Of Origin | China | ||
| Product Series | PW-310 | ||
| Features | Adjustable Time Delay, Dimming, Indicator Lights, Light Level Sensor, Sensitivity Adjustment, Vandal Resistant Lens | ||
| Switch Type | Motion Sensor | ||
| Installation Location | Wall | ||
| Included | Sensor Mask | ||
| Application Sector | Commercial | ||
| Standard | UL, cUL, E101196, UL 924, Complies with 2017 NEC requirements, RoHS | ||
| Warranty Type | 5-Year | ||
| Type | Sensor, Switch |
Dimensions
| Product Width US | 1.8 in | ||
| Product Weight US | 0.3271 lb | ||
| Product Volume US | 36.0 cu in | ||
| Product Depth US | 1.8 in | ||
| Product Height US | 4.5 in |
Additional Information
| RoHS Compliant | Yes | This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863. | |
| DesignLights Consortium Qualified System | Yes | ||
| Security | Yes | This product is ioXt certified |
Technical Information
| Has Battery | No | ||
| Number of Connections | 7 | ||
| Sensor Coverage Pattern | 180 deg | ||
| Sensor Type | Occupancy | ||
| Sensor Mounting Height | 4 ft | ||
| Number of Buttons | 2 | ||
| Amperage | 4.3 A | ||
| Number of Rockers | 0 | ||
| Sensor Technology | Passive Infrared (PIR) | ||
| Input Voltage | 347 VAC | ||
| Requires Neutral Wire | No | ||
| Line Frequency | 50 Hz, 60 Hz | ||
| Wattage | 1500 W | ||
| Mounting Type | In-Wall | ||
| On Function | Selectable Auto/Manual | ||
| Sensing Range | Major motion 35 x 30 ft,Minor motion 20 x 15 ft | ||
| Wire Connection Type | Flying Leads | ||
| Engraving Type | Icon |
