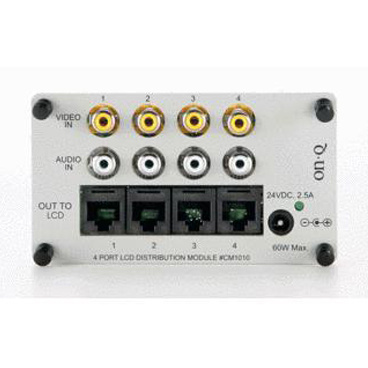

LCD Module

CM1010 On-Q
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 18ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

The LCD Module allows easy integration with the On-Q camera system. It supports up to four LCD displays and four camera inputs.
Application Sector Residential
Features

Features

  • Supports four LCD displays and four camera inputs
  • This product is not backwards-compatible with the prior LCD screen (F2297-XX)
  • Power supply not included. Recommended PW1060.
  • Enables camera viewing via TV with the TV Display Interface
  • Bracket included
Specifications

Specifications

General Info
UPC Number 804428023500
Countries Of Origin China
Product Line On-Q
Application Sector Residential
Additional Information
RoHS Conformant Yes This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.
Resources

Resources

Cutsheet
Camera System
pdf
Installation Instructions
LCD Display Module - CM1010
pdf
Supporting Document
Expanding the Unity System to Support Six Cameras, Support Bulletin, SB005-IM
pdf
Outputting Video Door Station and Camera Signals to Secondary Video Devices, Unity Integration Module, Support Bulletin, SB006-IM
pdf
