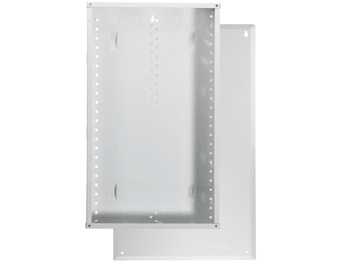

Photo of an On-Q 42-inch enclosure with screw-on cover. The screw-on cover is positioned behind the main enclosure.
Photo of a 42-inch On-Q structured wiring enclosure that is installed onto a wall with various wires and modules fitted inside the enclosure.
Interior image of an On-Q 42-inch Enclosure. The interior of the enclosure is lined with cardboard of packaging purposes.
Image of an On-Q 42-inch enclosure shown without the screw-on cover.
Image of the backside of an On-Q 42-inch enclosure shown without the screw-on cover.
Diagram of an On-Q 42-Inch Enclosure. The text in green reads "EN4200 Dimensions".
Photo of an installed On-Q structured wiring enclosure featuring various modules that are wired using cable management.
Close up of an On-Q structured wiring enclosure, showing the locations for two bottom knockouts
Top-down image of an On-Q structured wiring enclosure, with text that reads "2.5 INCH TOP OPENINGS MAKE PULLING WIRE THROUGH EASIER" in green text.
3/4 rear view of an On-Q structured wiring enclosure showing various features of the product. The text in green reads "REAR ACCESS KNOCKOUTS", "KEYHOLE OPENINGS", :STANDOFFS FOR SURFACE MOUNTING".
Close-up corner view of an On-Q structured wiring enclosure. Four screws with washers are shown on the image and the text in green reads: "INCLUDES COVER MOUNTING HARDWARE: SCREWS AND WASHERS ARE DESIGNED TO BITE THROUGH ENCLOSURE FINISH TO CREATE GROUNDI
3/4 front view of on On-Q structured wiring enclosure showing various features of the product. The text in green reads "BUILT IN LANCE POINTS FOR CABLE MANAGEMENT" DRYWALL DEPTH INDICATOR" FLEXIBLE MOUNTING TABS"
Photo of a person using an electric drill to install an On-Q structured wiring enclosure onto a wall. The text in green reads " EASY INSTALLATION CHOOSE FROM TWO MOUNTING OPTIONS: RECESSED OR SURFACE"

42-inch Enclosure with Screw-On Cover

EN4200 On-Q
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 10ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Perfect for larger installations, this 42"" enclosure features universal On-Q style mounting holes that are compatible with all bay-style modules. It also includes larger top openings that make pulling wire easier as well as additional knockouts, more s

Where To Buy
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites
Features

Features

  • 42-in Enclosure with Screw-On Cover
  • Drywall depth indicators
  • Flush and surface installation
  • Mounting tabs provide correct flush-mount position for standard installations
  • Patented mounting system offers versatile module mounting options
  • Literature pouch included for dealer information
  • Includes self-adhesive cable identification table
  • Cover included
  • Made in the USA
Specifications

Specifications

General Info
Color White
Type Enclosure
Application Sector Residential
Product Line On-Q
Country Of Origin United States
Standard UL (UL985, UL1023, UL1863), cULus, CSA, RoHS
UPC Number 804428023166
Dimensions
Product Depth US 3.6 in
Product Height US 42.0 in
Product Width US 14.25 in
Listing Agencies / 3rd Party Agencies
CSA Listed Yes
cULus Listed  Yes
Additional Information
RoHS Compliant Yes This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.
Technical Information
Cable Entry (2) rectangular knockouts for 1-gang electrical box
Frame Cold Rolled Steel
Thickness 0.1 in
