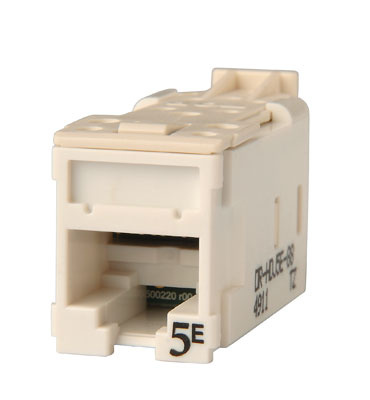

Clarity Cat 5E, CAT6 & CAT6A High Density Jack, ETL verified to TIA Category 5E, 6 & 6A component specification. Rear-loading, 180° exit, 8 position. Quick and easy lacing cap termination. Universal T568A/B wiring label. Center tuned to Clarity 5E patch cords for optimum performance.
In Stock
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?
Features
- Guaranteed Performance levels: ETL verified to TIA Category 6a & 6 component specification.
- Lacing Cap Design: No punch tool required, quick termination and installation time.
- Rear loading: Preferred mounting for panels.
- Icon compatible, C6a & Cat6 marking on jack face: Supports 606 designation requirements.
- RoHS compliant: Lead free.
- Easy to follow universal wiring label: Quick and user-friendly, eliminates confusion.
- Center tuned design: Transparent interface with Clarity 6a & 6 patch cords.
- High density footprint: Supports 48 port 1RU panel applications.
- Supports PoE: IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4
Specifications
General Info
| UPC Number | 662875880981 | ||
| Countries Of Origin | Mexico | ||
| Product Line | Legrand | ||
| Application Sector | Commercial/Industrial | ||
| Type | Jack | ||
| Standard | ANSI/TIA-568-C.2, UL 1863, IEEE 802.3af / 802.3at and Proposed 802.3bt Type 3 and Type 4, FCC part 68, Subpart F and IEC-603-7 compliant |
Dimensions
| Product Width US | 3.0 in | ||
| Product Weight US | 0.03 lb |
Additional Information
| RoHS Conformant | Yes | This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863. |
Technical Information
| Shielded/Unshielded | Unshielded | ||
| Compatibility | 568A/B | ||
| Gauge | 22-26 AWG | ||
| Performance Level/Tier | Cat 5e |
